WF-1000S50-16K Tethered Drone Power Management System high power density and small size

Brand Name : GS

Model Number : WF-1000S50-16K

Place of Origin : Made in China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 100

Delivery Time : 6-8

External Dimension : 248*223*127mm

Input voltage : 850-1000V

Output voltage : 50V/320A

Input terminal : XT60

Output terminal : M8

Weight : 6500grams

Contact Now

Description

850-1000V Input | 50V/320A Output | 16KW Continuous Power

Designed for mission-critical UAV applications, the WF-1000S50-16K delivers 16KW continuous power (50V/320A) from an 850-1000V DC input, enabling ultra-long endurance flights for demanding aerial operations.


Key Specifications


DC-DC isolated power converter: Isolates and converts 1KV DC input power to 50V DC output power, with a total output power of 16KW.

High power density, compact size, and light weight

Designed to meet power supply reliability requirements: input overvoltage/undervoltage protection, output overvoltage protection, current limiting, short circuit, and overtemperature protection
functions.


Application scenarios


This high-voltage DC power supply is a specially customized power supply with the advantages of small size, light weight, high efficiency, and built-in fan cooling. It has a maximum operating efficiency of >97%. The power supply module adopts an aluminum shell design, which is lightweight and attractive, with a waterproof design. It can be used as a substitute for imported high-voltage DC module power supplies.

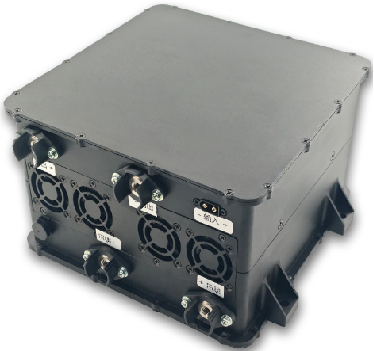

Product image


WF-1000S50-16K Tethered Drone Power Management System high power density and small size


FAQ


Q1: Do you support OEM/ODM?
A1: Yes. We can print your logo on the product.


Q2: About samples.
A2: Under normal circumstances, samples will be ready within 7 days, and 10-20 days for OEM/ODM orders. Sample fee and shipping will be charged.


Q3: What is the delivery time?
A3: For regular orders, we can ship within 15 days, for OEM/ODM, we can ship within 25-45 days (depending on the quantity). In the event of delays, we will notify you in advance of the status and resolution.


Q4: What is the minimum order quantity?
A4: There is no MOQ for wholesale (1 piece accepted), including OEM/ODM.


Q5: What are your payment terms?
A5: L/C.TT100%.


Q6: Can you reduce the shipping cost?
A6: When calculating the shipping cost for you, we always choose the cheapest and safest express. Although we have partnerships with shipping companies, we can't keep costs down because it's not us who get paid. If you think it's expensive for you. You can always make your own choice.


Q7: Return policy.
A7: If you want to replace the received item, you must contact us within 7 days after receiving the item. Returned items should be in their original condition and you should pay for additional shipping.
